Medical Washers & Disinfectors

Industrilex Manufacturing Pty Ltd has been at the forefront of Washer/Disinfector technology since its introduction to the Australian market 25 years ago. Since this time we have developed a quality product and continually develop our products to meet market and occupational standards. Being an Australian made product gives us the advantage of being able to customise your washer to suit your specific requirements.

Our washers incorporate a solid state electronic control which is fully programmable to allow for Australian Standard Upgrades. Detergent is automatically dispensed into the wash chamber at the required dose.

A thermal printer or a data logger is also available, allowing the user to download cycle information to the pc.

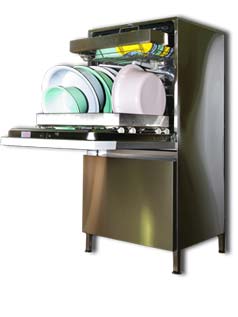

ACE Series 2000 Utensil Washer

Features:

  • Simple operation, press 'Start' button to commence program
  • Heavy duty, reliable circulation pump
  • Top and bottom rotating spray arms
  • Three wash spray levels for thorough cleaning
  • Three stage micro-filtration
  • Complete with large capacity baskets to restrain the load
  • Powerful inline heating system for added safety
  • Automatic detergent dispensing
  • Detergent storage cabinet
  • Acoustic and thermal insulation
  • 100% Stainless Steel construction
  • 10 year guarantee against rust on stainless steel wash chamber
  • 12 month warranty on all parts and labour
  • Meets AS 2945 & 4187
Specifications
  Free Standing Model Underbench Model
Height 1350mm 815mm
Width 600mm 600mm
Depth 600mm 600mm
Depth
(door open)
1200mm 1200mm
Water Supply Taps for the hot and cold water with 3/4" BSP connection must be provided in an accessible location, above or to the left or right of the machine
Power Supply Powerpoint 240 volt with 10AMP rating above or to the left or right of the machine
Drain Connection Drain hose terminates in 38mm standing waste, or connects to P trap or tundish. The length of the drain hose can be extended by a maximum of two metres
Utensil Washer

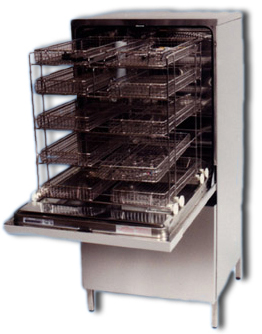

ACE Series 4000 Instrument Washer

Features:

  • Control panel displays temperature in wash chamber
  • 10 removable Stainless Steel mesh baskets transfer directly into Drying Cabinet
  • Removable lower shelf for bulky items
  • Heavy duty, reliable circulation pump
  • Three wash spray levels for thorough cleaning
  • Three stage micro-filtration
  • Sanitises at 80 degrees for ten minutes
  • Powerful inline heating system for added safety
  • Automatic detergent dispensing
  • Detergent storage cabinet
  • Acoustic and thermal insulation
  • 100% Stainless Steel construction
  • 10 year guarantee against rust on stainless steel wash chamber
  • 12 month warranty on all parts and labour
  • Meets AS 2945 & 4187
Specifications
  Free Standing Model Underbench Model
Height 1350mm 815mm
Width 600mm 600mm
Depth 600mm 600mm
Depth
(door open)
1200mm 1200mm
Water Supply Taps for the hot and cold water with 3/4" BSP connection must be provided in an accessible location, above or to the left or right of the machine
Power Supply Powerpoint 240 volt with 10AMP rating above or to the left or right of the machine
Drain Connection Drain hose terminates in 38mm standing waste, or connects to P trap or tundish. The length of the drain hose can be extended by a maximum of two metres
Instrument Washer

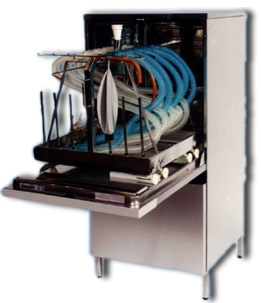

ACE Series 4000 Anaesthetic Washer

Features:

  • Unique self-draining hose system
  • Racks can be interchanged with other baskets
  • Heavy duty, reliable circulation pump
  • Three stage micro-filtration
  • Large capacity basket restrains the load
  • Powerful inline heating system for added safety
  • Automatic detergent dispensing
  • Detergent storage cabinet
  • On completion of program 'Completed' light displays and buzzer sounds
  • Acoustic and thermal insulation
  • 100% Stainless Steel construction
  • 10 year guarantee against rust on stainless steel wash chamber
  • 12 month warranty on all parts and labour
  • Meets AS 2945 & 4187
Specifications
  Free Standing Model Underbench Model
Height 1350mm 815mm
Width 600mm 600mm
Depth 600mm 600mm
Depth
(door open)
1200mm 1200mm
Water Supply Taps for the hot and cold water with 3/4" BSP connection must be provided in an accessible location, above or to the left or right of the machine
Power Supply Powerpoint 240 volt with 10AMP rating above or to the left or right of the machine
Drain Connection Drain hose terminates in 38mm standing waste, or connects to P trap or tundish. The length of the drain hose can be extended by a maximum of two metres

As the policy of the company is one of continuos product improvement all specifications subject to alteration without notice.


< back to top of page
Anaesthetic Washer
